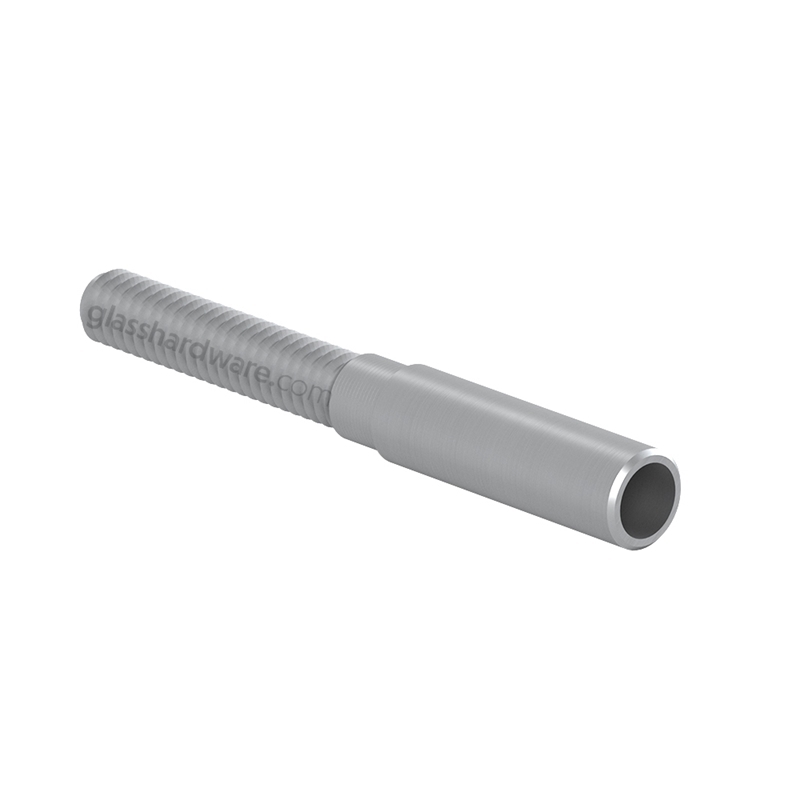

Left-Hand Threaded Crimp Fitting for Cable Railing System
in stock
Tension through every stretch.
The Left-Hand Threaded Crimp Fitting is made to crimp onto the end of stainless steel cable, preparing it for tensioning with our Inline Tensioner.
Crafted from 316 stainless steel, it offers excellent durability and corrosion resistance—ideal for both indoor and outdoor applications.
Usage guide
Crimp the Left-Hand Threaded Crimp Fitting onto the end of a cable and thread it into the left-hand side of the Inline Tensioner (R07). Then pair it with a Right-Hand Threaded Crimp Fitting (R05R) on the opposite side. When ready to tension your system, rotate the Inline Tensioner body to tighten the cable.
What’s included:
- One Left-Hand Threaded Crimp Fitting
| Weight | 0.03 lbs |
|---|---|
| Pkg Size | 0.375 × 0.375 × 2.438 in |
| Material | 316 stainless steel |
| Length | 2 3/8 inches (59.76 mm) |
| Barrel diameter | 5/16 inch (7.41 mm) |
| Opening diameter | 3/16 inch (5.45 mm) |
| Opening depth | 7/8 inch (22.79 mm) |
| Thread size | M6-1.0 |
| Thread length | 1 3/16 inch (30.2 mm) |
