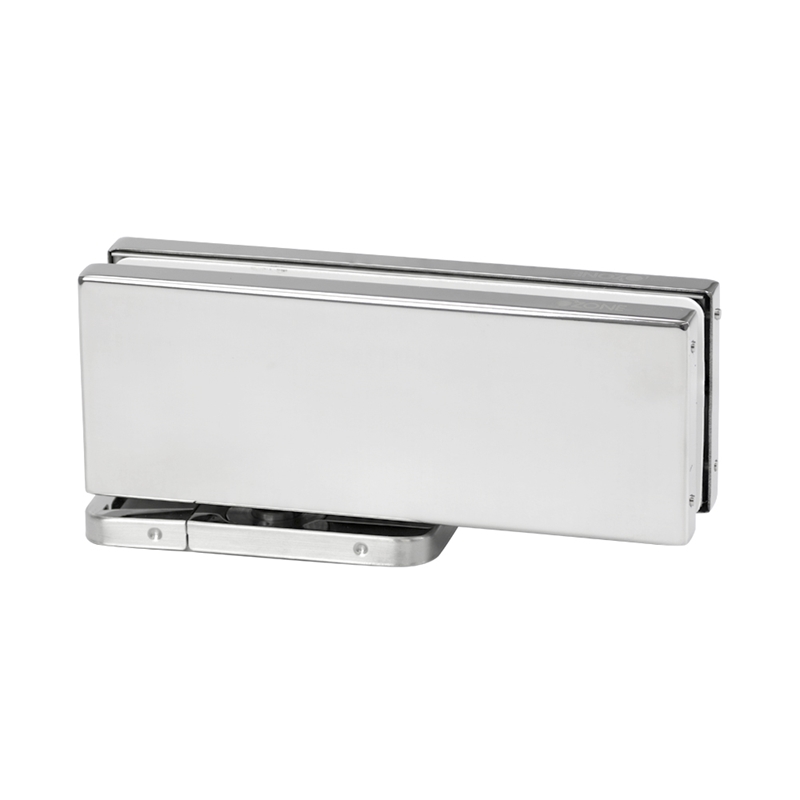

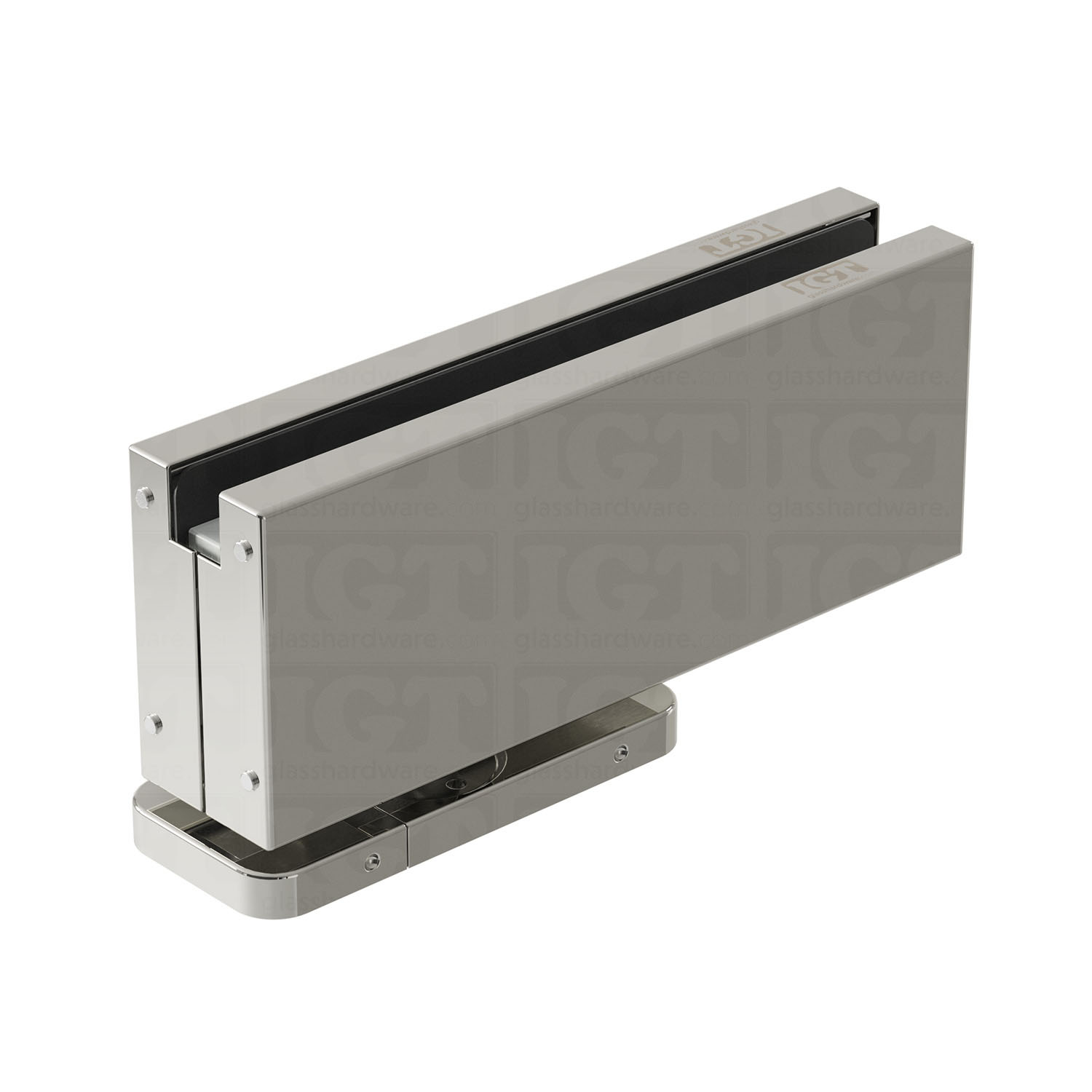

Bottom Hydraulic Patch 90º Hold Open – Polished Stainless

in stock

  • Bottom Hydraulic Patch  90º Hold Open – Brush Stainless BS
  • Bottom Hydraulic Patch  90º Hold Open – Polished Stainless PS

  • Requires no digging or cutting of floor.
  • Quick and easy installation with just 4 screws.
  • Suitable door weight: Max. 220lb
  • Suitable door width: Max. 39″
  • Suitable door thickness: 5/16″ to 1/2″ glass
  • Maximum opening 150° and controlled 135°
  • Durability-500,000 cycles (Tested)
  • Ambient temperature: -4°F to +123°F
  • No Hold Open: Optional
  • SS 316 cover plate secure with pin system mechanism
  • Finish: SSS/PSS
Weight 4.63 lbs
Pkg Size 2.375 × 4.125 × 9.125 in
Glass Fabrication

Cut Out Required

Maximum Width

39" (1000mm)

Maximum Weight

220lbs. (100Kg)

Glass Thickness

Designed for 5/16" (8mm) to 1/2" (12mm) glass

Finish

Polished Stainless

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Additional documents

SKU: OCFH100-HO-PS Categories: , ,
